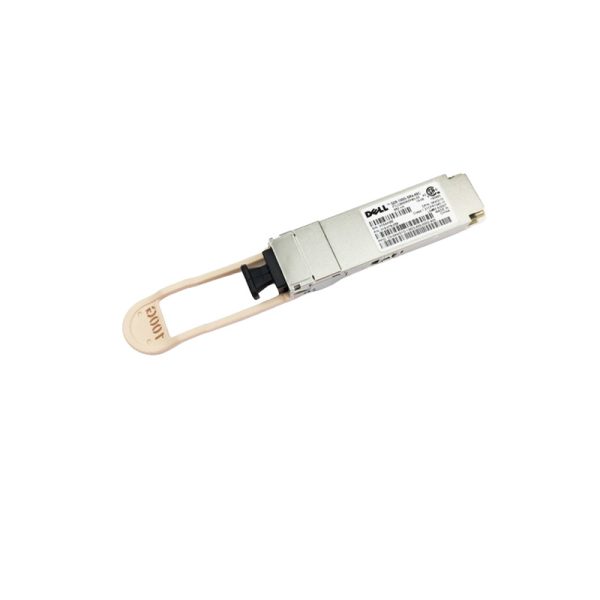

019-078-058 Dell 100GBASE-SR4 MMF MPO12 Connector QSFP28 Transceiver
019-078-058 Overview
The is a high-speed QSFP28 100GBASE-SR4 optical transceiver module designed for reliable 100 Gigabit Ethernet connectivity over multi-mode fiber (MMF). Utilizing four parallel 25Gbps lanes, it delivers an aggregate bandwidth of 100 Gbps, making it ideal for high-performance data center and cloud networking environments.Operating over an 850nm wavelength, this module supports distances of up to 70 meters on OM3 and 100 meters on OM4 fiber using an industry-standard MPO-12 connector.
019-078-058 Technical Specifications
Dell 100GBASE-SR4 MMF MPO12 Connector QSFP28 Transceiver
Manufacturer: Dell
Manufacture Part Number: 019-078-058
Product Type: Optical Transceiver Module
Form Factor: QSFP28
Interface: 100GBASE-SR4
Connector Type: MPO-12 (Multi-fiber Push-On)
Data Rate: 100 Gbps aggregate (4 × 25 Gbps lanes)
Transmission Standard: IEEE 802.3bm 100GBASE-SR4
Fiber Type: Multi-Mode Fiber (MMF)
Wavelength: 850 nm (nominal)
Transmitter Type: VCSEL (Vertical Cavity Surface Emitting Laser)
