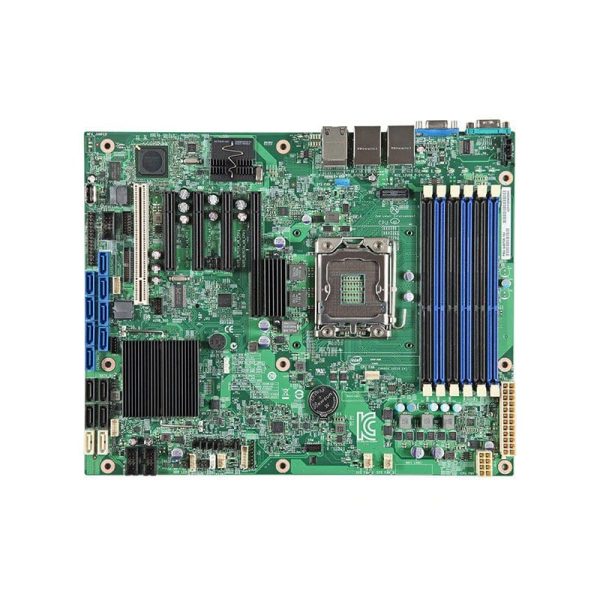

DBS1400FP2 Intel Server Motherboard S1400FP2 iC600-A

DBS1400FP2 Overview

The Intel S1400FP2, also known as DBS1400FP2, is a single‑processor ATX‑form server motherboard using the Intel C600‑A chipset and Socket B2 (LGA 1356), designed for one Intel Xeon E5‑2400 or E5‑2400 v2 processor (up to 95 W TDP). It supports six DDR3 DIMM slots, allowing DDR3‑1333/1600 Registered or Unbuffered ECC memory with up to 96 GB capacity in triple‑channel mode (~38.4 GB/s). Integrated storage interfaces include six SATA 6 Gb/s ports and eight SAS connectors, with optional software RAID support (0, 1, 5, 10). Networking is provided via dual 1 Gb Ethernet ports, and expansion slots include PCIe 3.0 ×16, ×8, and ×4.
