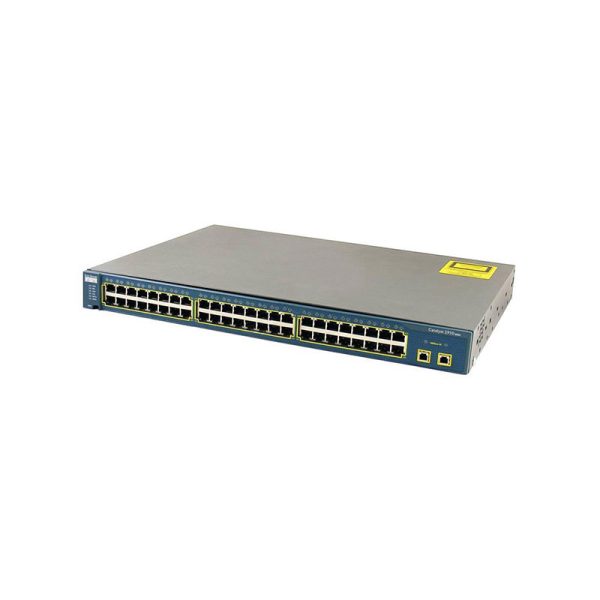

WS-C2950SX-48-SI Cisco Catalyst 2950 48-Ports 2 Port 1000 Base SX Switch
WS-C2950SX-48-SI Overview
The Cisco Catalyst is a 1U rack‑mountable, Layer 2 manageable switch offering 48 autosensing 10/100 Mbps RJ‑45 ports and 2 fixed Gigabit 1000BASE‑SX fiber uplinks, running Cisco’s Standard Image firmware. Designed for cost-effective edge deployment in small or mid-sized networks, it delivers wire-speed switching with a non-blocking fabric up to ~13.6 Gbps, forward rates up to ~10.1 Mpps, and supports up to 8,000 MAC addresses. Additional features include VLAN support, 802.1p QoS, SNMP/RMON monitoring, Web-based Device Manager, Cisco Express Setup.
WS-C2950SX-48-SI Technical Specifications
Cisco Catalyst 2950 48-Ports 10/100 2 Port 1000 Base SX Switch with Software Image
Manufacturer Part Number: WS-C2950SX-48-SI
Brand Name: Cisco
Product Type: Ethernet Switch
Interfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Port/Expansion Slot Details: 48 x Fast Ethernet Network, 2 x Gigabit Ethernet Uplink
Media & Performance
Media Type Supported: Twisted Pair, Optical Fiber
Ethernet Technology: Fast Ethernet
Network Technology: 10Base-T, 10/100Base-TX, 1000Base-SX
Network & Communication
Layer Supported: 2
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Form Factor: Rack-mountable, Wall Mountable
Desktop
Height: 1.7″
Width: 17.5″
Depth: 13″
